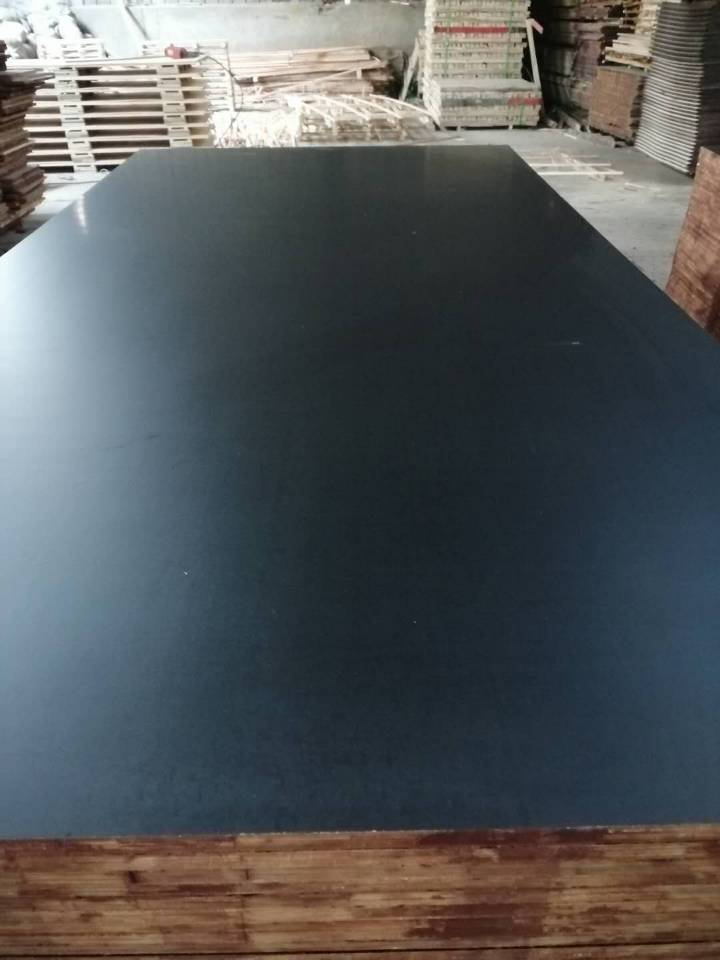

1)Birch Core Film Faced Plywood (Contreplaqué Filmé De Noyau En Peuplier/Pappelkern-Filmbeschichtetes Sperrholz)
Specifications:
Thickness: 9mm,12mm,15mm,18mm,21mm,25mm,27mm,30mm.
Size in sheets: 12x2440mm,1250x2500mm, large size is available.
Material: Birch
Glue:WBP phenolic or melamine.
Min.order: 1*40HQ
Delivery Time: 15 days after payment
Payment: L/C,T/T,
The Poplar Core Film Faced Plywood Can be About 6-10 repeated using times according to formwork application projects.
Product | Film faced Plywood | Species | Poplar/Birch/Eucalypts | |||
Film: | Black /Brown/Red | Grammage: | 180g/㎡ | |||
Size: | 18mmx1220x2440 BROWN | Glue: | WBP:Melamine/Phenolic | |||
Sr. | Property | Unit | Test | Value of | Result | |
⒈ | Moisture Content | % | EN 322 | 10% | Check out | |
⒉ | Density | kg/cbm | EN 323 | 580 | Check out | |
⒊ | Bonding | Bonding | Mpa | EN 314 | Max: 1.37 | Check out |
Min: 0.65 | ||||||
Damage Rate | % | ----- | 65% | |||
⒋ | Bending | Longitudinal | Mpa | EN 310 | 6800 | Check out |
Lateral | 5200 | |||||
⒌ | Bending | Longitudinal | Mpa | 48.3 | Check out | |
Strength | ||||||
N/mm | Lateral | 35.7 | ||||
⒍ | Cycle Life | About 6~10 Repeated Using times According | ||||
Projectes by formwork Application | ||||||
 |
